Control System Lab
“We are OEM and NSIC Approved in more than 300 categories on GEM.This item is available on GEM for purchase pan-India”
Control System Lab
“We are OEM and NSIC Approved in more than 300 categories on GEM.This item is available on GEM for purchase pan-India”

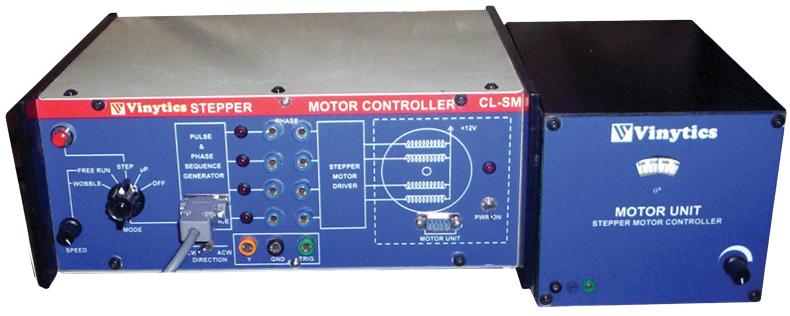

TTL circuit for single stepping and free run mode with frequency generator <10-100 Hz Wobble mode
Direction selector
LED indicators for phase sequence observation
12V, 1A/phase, 2.0 kg/cm torque, 1.8 degree stepper motor, uP
interface
Calibrated dial for position monitoring
Position pick up by servo potentiometer
IC regulated power supply for complete circuitry
Supporting literature with patch cords, 220V mains operated.
Study of Synchro Transmitter / Receiver
Two dials for input/output angular displacement
Knob with large pointers on transmitter and receiver
Sockets for rotor (R1, R2) and stator (S1, S2, S3) on panel
Built in isolated power supply for both
Attenuated output on sockets for view of signal observation on
CRO
Supporting literature with patch cords
220V mains operated

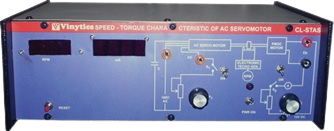

Two phase AC Servo Motor (2500 RPM).
Electronic speed sensor with RPM display on panel meter.
Ammeter for load current.
DC Motor for loading.
Torque calculation from back emf.
Speed controller for motor.
Isolated supply for motor.
User’s Manual with patch cords.
220 V AC operated.

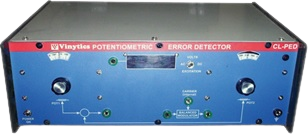

To study of potentiometer as error detector element
Two Full 360 degree rotation servo- potentiometers with
1 degree resolution
IC regulated DC excitation for both potentiometers
AC excitation at 400 Hz approx.
Built in demodulator circuit
3.5 digit DVM for carrying measurements
IC regulated power supply for rest of the circuitry
Complete with instruction manual and patch cords, 220V mains operated.

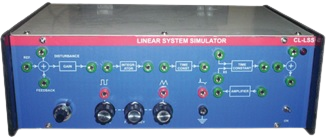

Study of simulated linear systems
Simulated blocks configurable as first, second and
third order systems
Disturbance adding facility at input and output
Signal Sources
Square wave : 20-80 Hz, 0-2 Vpp continuously variable
Triangular wave : Similar to square wave both in frequency and amplitude
Integrated triangle wave fixed amplitude
Built in IC regulated power supply
Complete with detailed instruction manual and patch cords,
220V mains operated

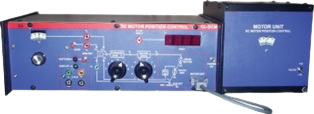

Study of DC position Servo
Position control of a 12 volt, 1 Amp DC geared PM motor (50/60
RPM)
Calibrated dials with 1 degree resolution for reference and output position
Two 360 degree Servo-potentiometers
Built in step signal
Built in waveform capture/display card for study dynamics
3.5 digit digital voltmeter
IC regulated DC power supplies for circuitry
Supporting literature for experiments with patch cords,
220V mains operated

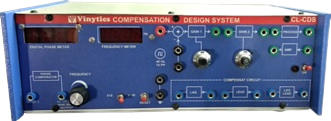

Study of lag, lead and lag-lead
Second order simulated systems
Study of All pass filter
Lag, lead and lag – lead compensating circuits
Gain compensating amplifier with calibrated dial
Signal sources
Sine wave : Continuously variable in two decades (10-1000
Hz) with 0-8 Vpp amplitude
Digital phase angle meter 0-180 degree (optional)
Complete with patch cords and detailed literature, 220V mains operated

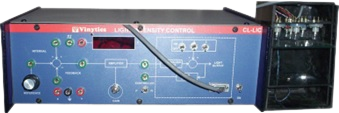

Feedback control of light intensity
Study of inherent non-linearties- sensor, lamps
PI control
Dynamic response display
Experiments & specifications :
Characterization of light panel and light sensor blocks
Study of a practical single loop feedback control system which includes :
– Disturbance study
– Error monitoring
Performance improvement through P-I control
Evaluation of dynamic behaviour
Seven lamps 6V/300mA
5 Hz square wave and triangular wave for dynamic response study
Switch selectable PI-Controller
Built-in 3.5 digit DVM
Built-in IC regulated power supplies
220 +/- 10%, 50 Hz mains operation
Detailed literature and patch cords included

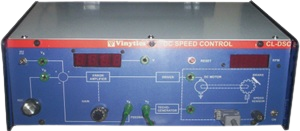

Study of speed control of DC motor in open and close loops
Speed control of 12V, 4W, permanent magnet DC motor
Speed range upto 3000 RPM (typical)
Electronic techogenerator for feedback
Non-contact eddy current break for load
4 digit RPM counter
3.5 digit digital voltmeter
Built in regulated power supply
Detailed instruction manual with patch cords, 220V mains operated
Digital Controller implementation on uP-kit
Simple Op-amp based analog plant
CRO display of response
Design and test new algorithms
Experiments :
Indentification of the controlled process
Study of sampling period variation
Designing P,PI,PD and PID controllers
Advanced algorithms implementation
Features and specifications :
Second order simulated process (analog process)
Built-in D/A and A/D circuits (8-bit)
8085 based uP kit as digital controller with user software in
8K EPROM
16-bit arithmetic for algorithmic calculations
16 built-in levels of P, I and D gains each.
Complete flexibility for the user to develop own software
Square wave test input (internal)
IC regulated internal built in power supplies
220V +/- 10%, 50Hz mains operation
Detailed literature and patch chords included
Essential accessory – a CRO

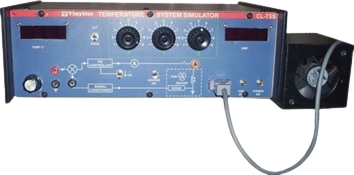

Fast compact oven upto 90 degree C
Variety of control actions
Digital temperature readout
Solid state temperature sensor
Experiments :
Identification of the oven parameters
Study of ON-OFF temperature control (with adjustable relay characteristics)
Study of P, PI, PD and PID controls having adjustable coefficients
Features and Specifications :
Temperature controller with facilities for P,I,D and relay control blocks
Operating temperature : Ambient to 90 degree C
Separate control for P,I,D channel gains
Two settings for relay hysteresis
Fast 25W oven fitted with IC temperature sensor
Digital display of set and measured temperature on a 3.5 digit built in DVM
Buffered output for recorder
IC regulation in controller circuit power supplies
220V +/- 10%, 50 Hz main operation
Supporting literature and patch cords included
No accessories required

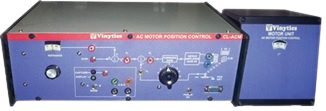

Study of AC position servo motor.
Two precision servo-potentiometers full 360 degree rotation
Calibrated dials for command and output position with 1 degree resolution
Motor controller circuit (thyristorized)
110 volt two phase AC servo motor (60 RPM synchronous)
Waveform capture/display card
220 Vac mains operation
Isolated supplies for motor, control circuit and card
Supporting literature with patch cords
220V mains operated
