Aluminium Profile Modular System consisting of different type of modules.
Educational Bench Top Model with schematic / block diagram of the test circuit engraved on the panel.
Test points & measurement points brought out
and connected to 2mm plastic & BT15/30 terminals circuit setup for testing through
in reconnections of patch cards.
Complete illustrated manual covering brief theory of Equipment along with technical details and experimental procedures,
Connection diagrams will be supplied with experimental set up.
Technical Specifications:
1) Digital Meters: Voltage (0-300V) & Current Measurement (0-10A)
2) Digital RPM counter
3) Double Pole MCB
4) LED Indicators
5) D.C. MOTOR:
Type: DC Motor, separately excited, screen protected, horizontal foot mounted, fan cooled, Capacity: 1 HP,Winding: Shunt wound, R.P.M.: 1500, Volts. : 230,Insulation:
Class ‘B’, Armature and field sockets brought out to connect to the panel
6) FIRING CIRCUIT:
Line Synchronizing Op-Amp based triggering circuit
Firing Pulse Generator Digital type
Potentiometer used to vary the triggering circuit
Pulse output terminals
1:1 Pulse Transformer 1 KVA
Step Down Transformer Firing Circuit.
7) POWER CIRCUIT:
Four SCR’s (600V/12A)
Suitable RC Snubber Circuit
Free Wheeling Diode
8) LOAD
Consist of resistive load (100Wx1)
Lamp Holder
Lamp 250 Volts or
Inductive Load
9) 1:10 Attenuator for RRO
10) Isolated 220V AC for CRO
11) Field & armature terminals for DC shunt motor
12) Uncontrolled DC output 220V for field voltage of DC motor
Aluminum Profile Modular System consisting of different type of modules.
Educational Bench Top Model with schematic / block diagram of the test circuit engraved on the panel.
Test points & measurement points brought out
and connected to 2mm plastic & BT15/30 terminals circuit setup for testing through
in reconnections of patch cards.
Complete illustrated manual covering brief theory of Equipment along with technical details and experimental procedures,
Connection diagrams will be supplied with experimental set up.
Technical Specifications:
1)Digital Meters: Voltage (0-300V) & Current Measurement (0-10A)
2)Digital RPM counter
3)Double Pole MCB
4)LED Indicators
5)D.C. MOTOR
Type: DC Motor, separately excited, screen protected, horizontal foot mounted, fan cooled, Capacity: 1 HP,Winding: Shunt wound, R.P.M.: 1500, Volts. : 230,Insulation:
Class ‘B’, Armature and field sockets brought out to connect to the panel
FIRING CIRCUIT:
Line Synchronizing Op-Amp based triggering circuit
Firing Pulse Generator Digital type
Potentiometer used to vary the triggering circuit
Pulse output terminals
1:1 Pulse Transformer 1 KVA
Step Down Transformer Firing Circuit.
POWER CIRCUIT
Two SCR’s (600V/12A)
Suitable RC Snubber Circuit
Two Diodes(600V/6A)
LOAD
Consist of resistive load (100Wx1)
Lamp Holder
Lamp 250 Volts or
Inductive Load
1:10 Attenuator for RRO
Isolated 220V AC for CRO
Field & armature terminals for DC shunt motor
Uncontrolled DC output 220V for field voltage of DC motor
Aluminum Profile Modular System consisting of different type of modules.
Educational Bench Top Model with schematic / block diagram of the test circuit engraved on the panel.
Test points & measurement points brought out
and connected to 2mm plastic & BT15/30 terminals circuit setup for testing through
in reconnections of patch cards.
Complete illustrated manual covering brief theory of Equipment along with technical details and experimental procedures,
Connection diagrams will be supplied with experimental set up.
Technical Specifications:
1)Digital Meters: Voltage & Current Measurement
2)Digital RPM counter
3)Double Pole MCB
4)LED Indicators
5)D.C. MOTOR:
Type: DC Motor, separately excited, screen protected, horizontal foot mounted, fan cooled, Capacity: 1HP,Winding: Shunt wound, R.P.M.: 1500, Volts. : 230,Insulation: Class ‘B’, Armature and field sockets brought out to connect to the panel

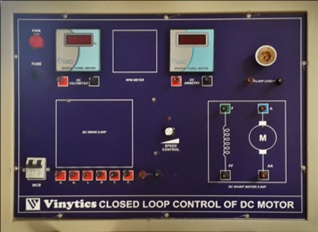

6) FIRING CIRCUIT:
Potentiometer as input transducer for converting reference voltage. It will be suitably marked
Feedback Arrangement Tacho / Armature
Summing amplifier to receive inputs, reference signal and tachgenerator output. This amplifierwill have and adjustable again.
A DC Tacho- generator/speed sensor will be also used to indicate the motor speed in RPM.
Thyristor converter using single phase half
controlled converter to control DC motor through armature and power supply for field winding and electronic amplifier
Step Down Transformer Firing Circuit.
1:1 pulse Transformer.
7). POWER CIRCUIT:
Four SCR’s (600V/12A)
8.Pot for Open Loop
9.Pot for Closed Loop
10.Pot for Gain
11.Tachometer Panel type
12.Suitable protection for the electronic circuits and motor.
Aluminum Profile Modular System consisting of different type of modules.
Educational Bench Top Model with schematic / block diagram of the test circuit engraved on the panel.
Test points & measurement points brought out
and connected to 2mm plastic & BT15/30 terminals circuit setup for testing through
in reconnections of patch cards.
Complete illustrated manual covering brief theory of Equipment along with technical details and experimental procedures,
Connection diagrams will be supplied with experimental set up.
Technical Specifications:
1)Digital Meters: Voltage & Current Measurement
2)Digital RPM counter
3)Double Pole MCB
4)LED Indicators
5)A.C. MOTOR:
AC Induction Motor 0.5HP, Capacitor
start 1phase 230V AC, 50Hz, 1440rpm,
TEFC, IP44, IC01, Class-B,
and Single Shaft Extension.
6) FIRING CIRCUIT:
Micro Controller based Firing circuit for precise control.Step Down Transformer Firing Circuit.
Firing Angle Display.Facility for firing angle control using a potentiometer
7). POWER CIRCUIT:
Two SCR’s (600V/12A) in Back to Back configuration
8) LOAD
Motor Mounted on MS Base with mechanical loading arrangement with pulley, belt, Spring Balance
DSO 2 channel 25Mhz, 500msps, 2.5 kpts
Aluminum Profile Modular System consisting of different type of modules.
Educational Bench Top Model with schematic / block diagram of the test circuit engraved on the panel.
Test points & measurement points brought out
and connected to 2mm plastic & BT15/30 terminals circuit setup for testing through
in reconnections of patch cards.
Complete illustrated manual covering brief theory of Equipment along with technical details and experimental procedures,
Connection diagrams will be supplied with experimental set up.
Technical Specifications:
1)Digital Meters: Voltage (0-300V) & Current Measurement (0-10A)
2)Digital RPM counter
3)TPN MCB
4)DOL Starter Three Phase
5)LED Indicators
6)A.C. MOTOR:
Type: AC Induction Motor,1 HP,3 Phase, 415V AC, 50Hz, 1440rpm, TEFC, IP44, IC01, Class-B, Single Shaft Extension.
CONTROL CIRCUIT:

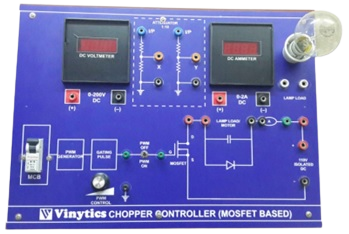

The control circuit generates driver output for driving the MOSFET in chopper mode. The duty cycle can be varied from 0% to 90%. The frequency can be varied.
Soft start and soft stop is provided for driver output.
POWER CIRCUIT:
One MOSFET / IGBT (600V/25A)
3 phase bridge rectifier to convert 3-phase rotor supply to DC supply. An indicator is connected in series with the DC supply for smoothing of a DC. A Glass fuse is connected in series with the
DC supply.
An IGBT is provided for chopper control MOSFET is mounted on a proper heat sink. Snubber circuit is connected across
MOSFET for dv/dt. A fuse is also provided for protection.
All the points are brought out on the front panel for interconnection.
Six power Diodes (600V/12A) to rectify Wound Rotor generated AC Resistor for starting
