ELECTRICAL Lab
“We are OEM and NSIC Approved in more than 300 categories on GEM.This item is available on GEM for purchase pan-India”
ELECTRICAL Lab
“We are OEM and NSIC Approved in more than 300 categories on GEM.This item is available on GEM for purchase pan-India”

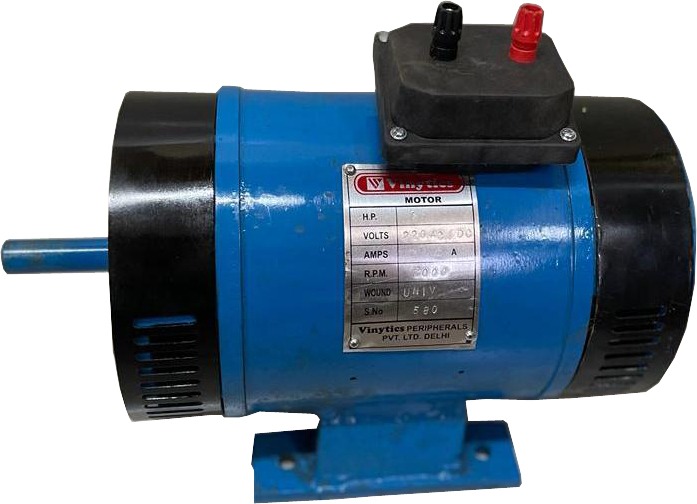

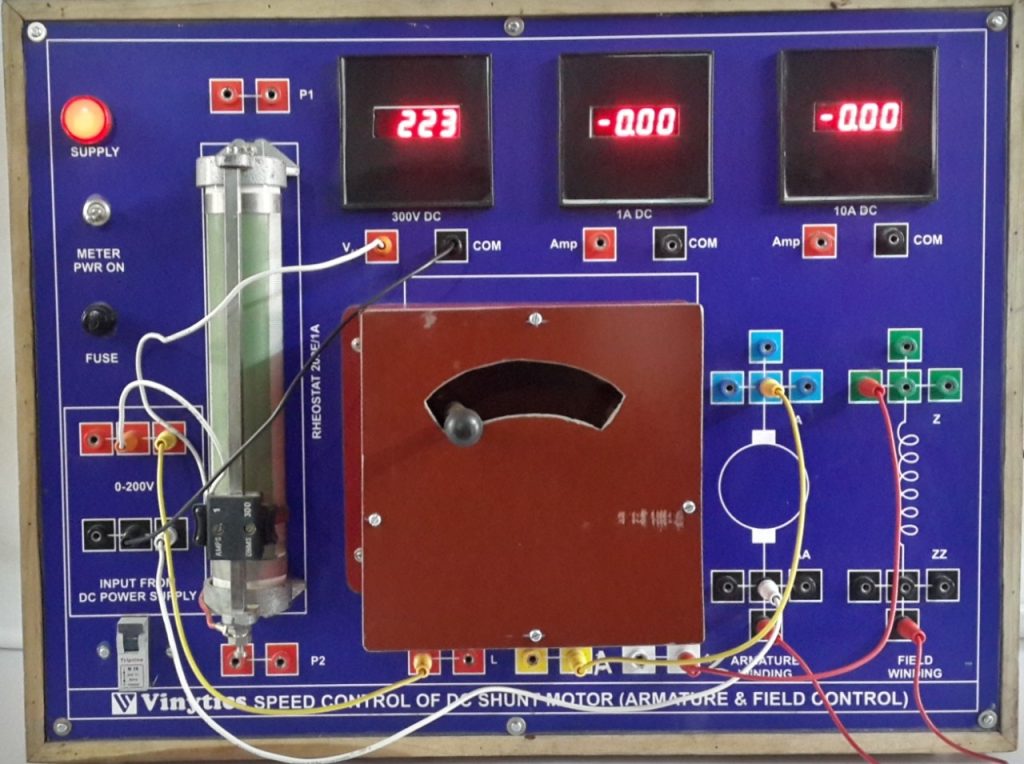

Type : DC Shunt Motor
Capacity : 1 HP
Winding : Shunt Type
P.M. : 1500
Volts: 230V
Insulation : Class ‘B’
Connections: All the terminals of armature and shunt field shall be brought over to a sheet, fixed to terminal box, fitted on top of Motor.
Fitted with mechanical loading arrangement.
All components fitted on Bakelite Sheet
All components are fitted on Vinyl Colored Sticker
Labelled Meters and relevant connection diagram
Screen Printed circuit diagrams on the Panel
Double Pole MCB
Variable DC Supply-200V DC
Fixed DC Supply Voltage
Onboard DC voltmeters and Ammeters
Complete User Manual with connection diagrams
24” x 18” (inches)
Sturdy MS Channel Based powder coated Box with table top mounting stand

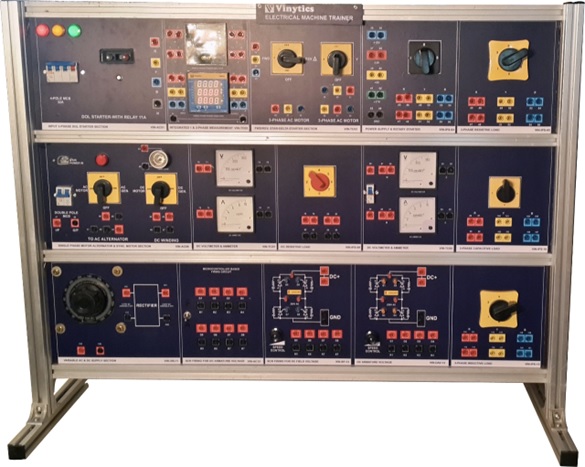

Diagrammatic representation on concept on the panel Aluminum profile sturdy flat panel (Table Top) system, should carry various high voltage components housed in enclosures (panel) to minimize shock possibility.
Input 3 phase DOL Starter panel ( 4 pole MCB of 415 V/4A ,DOL Starter with relay for overcurrent protection) ,
Integrated AC 3 phase measurement panel ( Digital meters for 3 Measures V, I, PF (0.2 lag – unity 0.2 lead), Hz ,Current specs for 3 Phase meter = 5A ) Integrated AC 1 phase multifunction measurement panel Digital meter for 1φ Measures V, I, PF (0.2 lag – unity 0.2 lead), W, VA, VAR, Hz etc., Current specs for 1 Phase meter = 5A , Auxiliary supply = 170-250VAC DC voltmeter (0-300V), DC Ammeter (0-5A) with polarity protection diode , overcurrent Protection for current above 4A -02Nos Indicating lights.
SCR Actuator (variable DC)( Full bridge SCR based 0V-195V / 16Amp firing with linear characteristics , 2 Nos. of these supplies required for DC Armature, DC motor field & motor field Variable AC/DC power Supply Panel ( AC output 0 to 270V / 4 Amp. , DC output 0 to 230V / 4 Amp.)
Electrical Machines should be mounted on finely painted sturdy base frame with easy machine interchangeability.

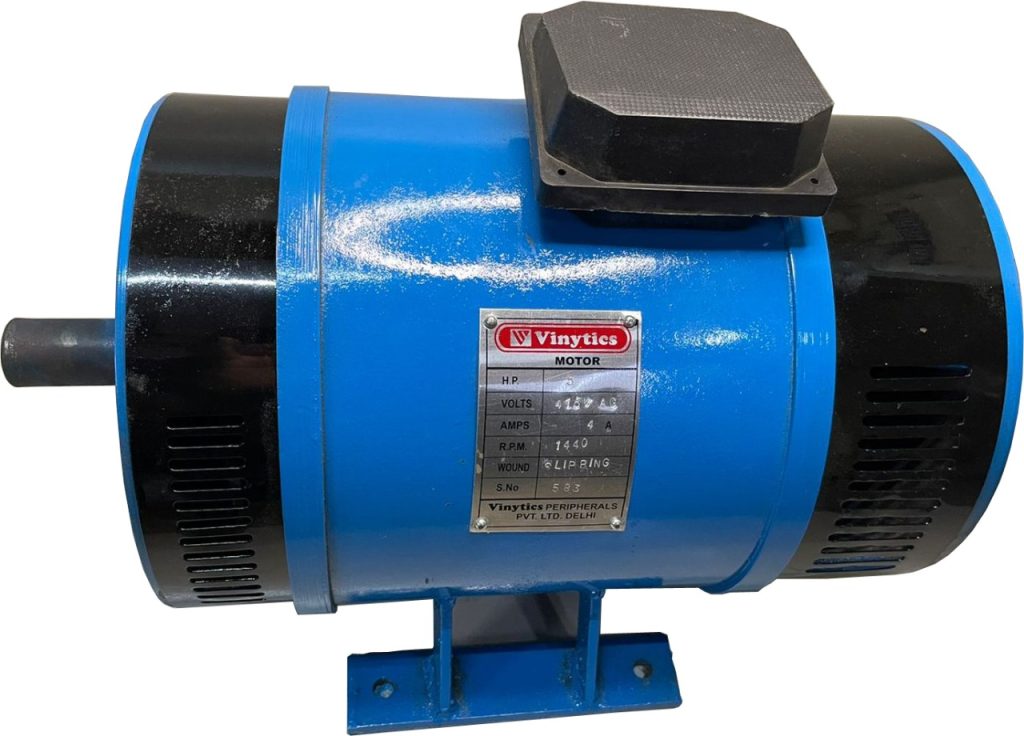

Pole Changing Induction Motor Voltage: 3 phase, 415VAC, 50Hz, Capacity: 1HP / 1500RPM for two different speeds 1400/2800rpm
DC Shunt Motor Voltage 220VDC,50Hz, Capacity: 1HP/1450RPM with friction brake loading arrangement

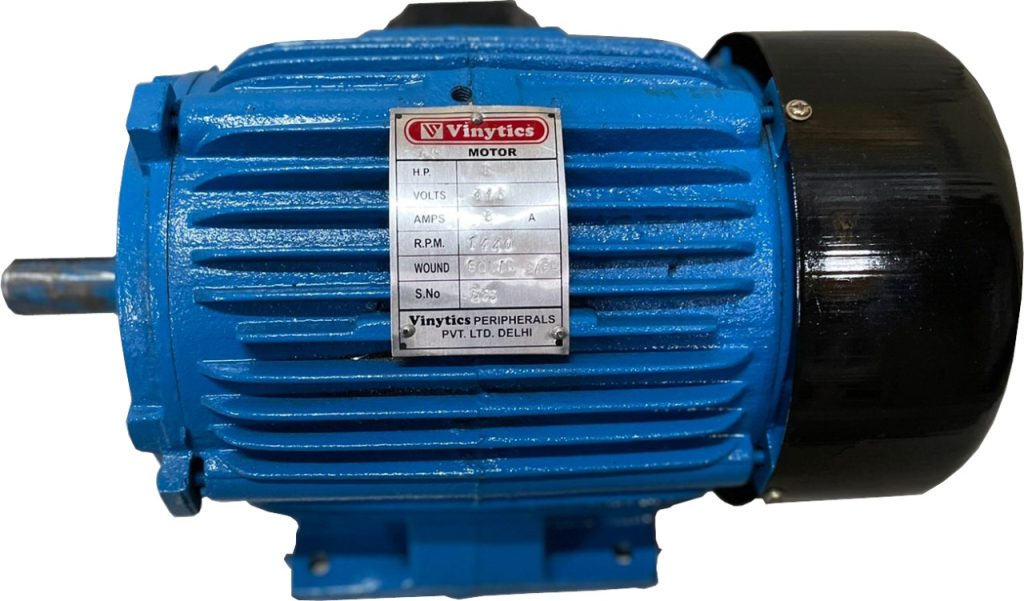

Induction Motor Voltage: 1 phase, 220VAC, 50Hz, Capacity: 1HP / 1500RPM
All motors should be flexibly coupled to each other so that it can be converted into a DC-AC,AC-DC set
Learn the principle of SCR firing
Learn the working of SCR controlled full wave rectifier
Learn the phase control of firing of SCR
Understand and conceptualize the significance of three phase DOL starter in running a three phase induction motor
To identify different types of motor
Panel consist of MS powder coated housing with back side removable.
Transformer provided will be high quality copper wound
PRIMARY :
0-220V AC (LINE to LINE),50Hz,1KVA
SECONDARY :
0-220V AC (LINE to LINE),50Hz,1KVA
PRIMARY :
0-440V AC (LINE to LINE),50Hz,1KVA
SECONDARY :
0-440V AC (LINE to LINE),50Hz,1KVA
Transformer will be differently housed in a MS powder cabinet for easy carrying and other general use.
Short circuit protection with the help of MCB.
Connections through 4mm safety terminals.
Supplied with instruction manual
All components are fitted on Vinyl Colored Sticker on a bakelite sheet
Labelled Meters and relevant connection diagram
Screen Printed circuit diagrams on the Panel
MOTORS
AC SERIES MOTOR
Technical Specifications
All components fitted on Bakelite Sheet
MACHINE REQUIRED
Type : AC Series Motor
Capacity : 1HP
Winding : Series Type
R.P.M. : 1500
Volts. : 230V
Insulation : Class ‘B’
Connections : All the terminals of motor shall be brought over to a sheet, fixed to terminal box, fitted on top of Motor
