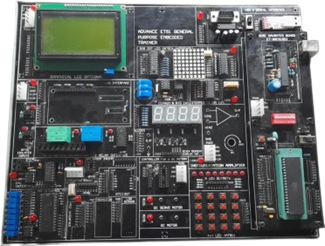

Embedded System Lab
“We are OEM and NSIC Approved in more than 300 categories on GEM.This item is available on GEM for purchase pan-India”
On Board USB interface for downloading and communications (using FT232B)
RS232 serial port for the user Design.
On board Toggle switch for following Selection
– Downloading the Program into the Microcontroller using Serial port
– Downloading the Program Microcontroller using USB Port into the 01
On Board 8 channel ADC with potentiometers for giving input
On Board DAC Chip
On Board 16*2 LCD Display
On board provision for interfacing 128×64 Graphical LCD
On Board 4 seven segment Display
On Board 4 X 4 Key Matrix
On Board 8 LED Outputs
On Board Two Relays(220V}
On Board two Opto Isolated Inputs
On Board Stepper Motor Controller Driver
On Board DC Motor Controller
On Board Serial EEPROM 24C04
On Board Thermistor Temperature sensor
On Board LDR sensor
On Board Buzzer output
On board interface for servo motor
On board 8×8 DOT LED Matrix interface
On board RTC-1307
On board SPI EPROM 2SC040
On board Temperature Sensor DS1820
On board PS2 interface
On Board Amplifier for sensors like RTD, Load cell and Thermo couple
Built in Power Supply
Enclosed in a Plastic Box
Supplied with User Manual, Connecting wires, USB cables & CD with Sample
8051 DAUGHTER BOARD
MODEL NO. : ET-89CS1RD2
Based on 89cS1RD2
All ports are available onboard for the user
On board USB for Downloading the Program
Onboard Reset switch

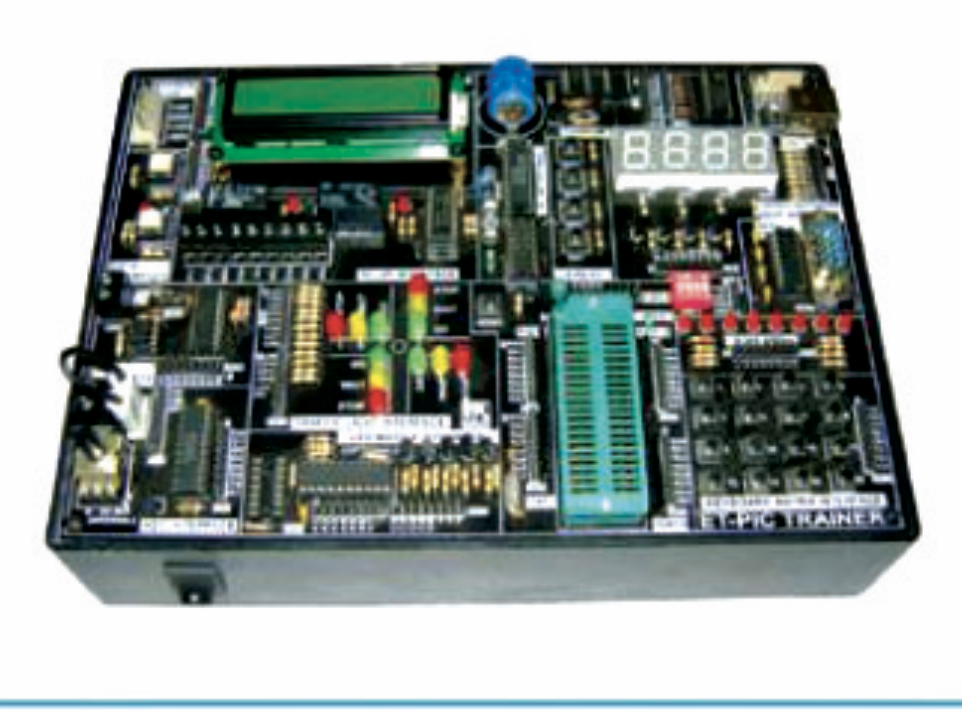

PIC DAUGHTER BOARD
MODEL NO. : ET-PIC-16F877A
Based on PIC 16F877A
All ports are available onboard for the user
Onboard Reset switch
On board USB for Downloading the Program

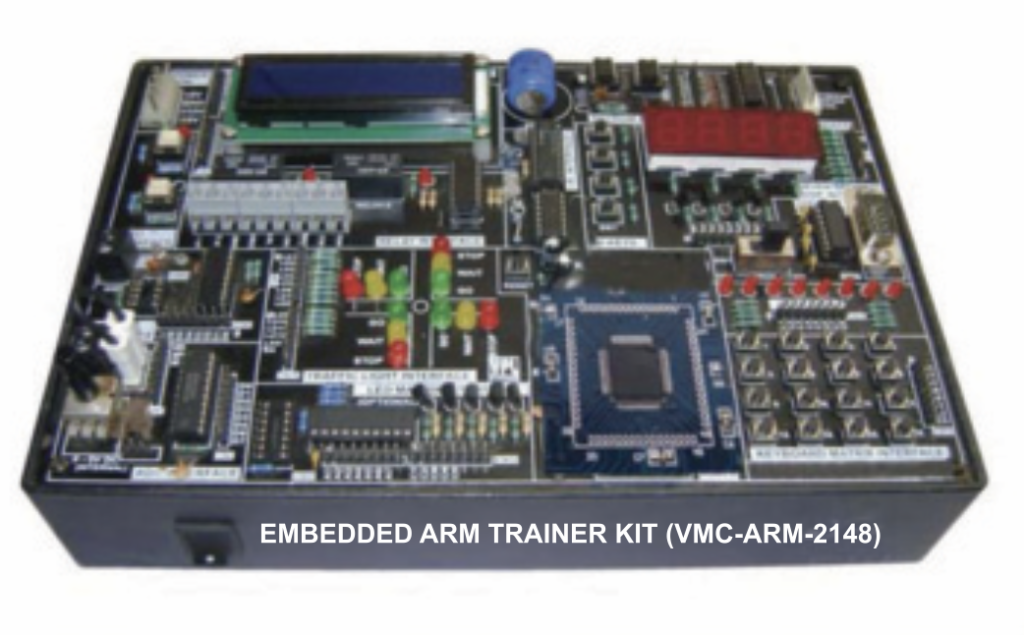

ARM7 DAUGHTER BOARD
MODEL NO. : ET-LPC2148
Based on LPC2148
All ports are available on board for the user
Onboard Reset switch
On board USB for Downloading the Program

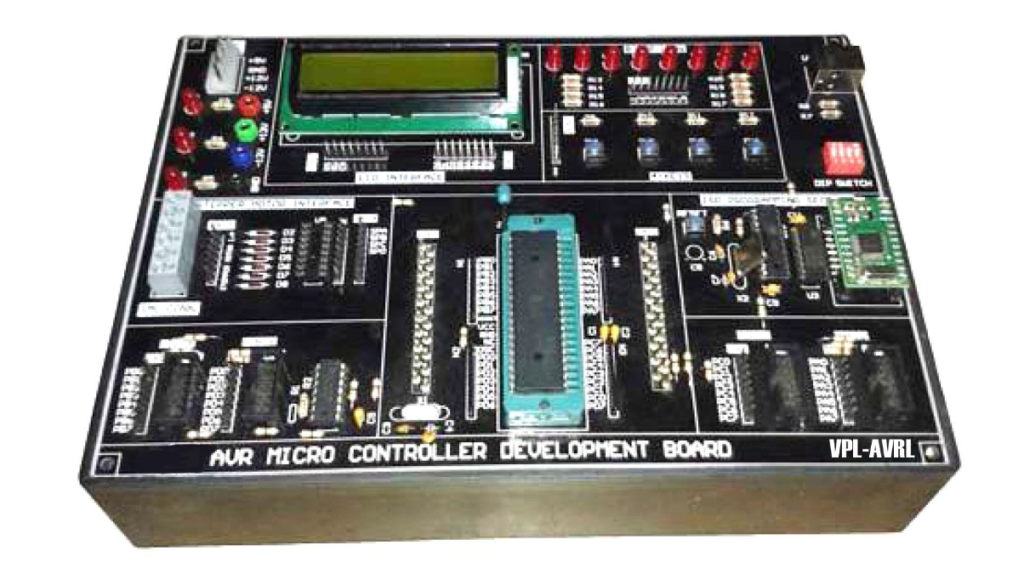

AVR ATMEGA 16 DAUGHTER BOARD
MODEL NO. : ET- ATMEGA16
Based on AVR Atmega 16
All ports are available onboard for the user
Onboard Reset switch
On board USB for Downloading the Program

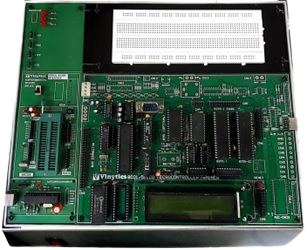

CPU – 8 bit Microcontroller, the 8031/8051/89C51/52.
System configured for 89C51/52.
MEMORY – Total on board capacity of 64KB Program
memory & 6KB of data memory.
RAM – 32K bytes (62C256).
ROM – 64K bytes of EPROM loaded with powerful monitor
program (27512).
TIMER (Optional) – 16 bit programmable timer/counter using 8253
& External Timer T0, T1 from CPU.
I/O – 24 I/O lines using 8255 PPI chips
– 24 I/O lines using 8255 PPI chips (Optional)
KEYBOARD – IBM PC compatible Keyboard
DISPLAY – 20 x 2 Liquid Crystal Display (Backlit)
BUS – All data, address and control signals (TTL compatible)
available at FRC connector
INTERFACE – 1) One serial UART interface provided by 8031/
51/89C51/52.
– 2) RS-232C port through 8251.
BATTERY BACKUP – Battery back-up for the RAM area.
POWER SUPPLY – In-built power supply (+5V, GND also available
on board).
OPERATING TEMP. – 0 to 50°C.
Programmer – 89SXX.. Series Programmer compatible with
(Win-10).
_AT89S51 Central Processing Unit
On-chip Flash Program Memory with In-System Programming
(ISP) and In-Application Programming (IAP) capability
Boot ROM contains low level Flash programming routines for
downloading via the UART
Can be programmed by the end-user application (IAP)
Parallel programming with AT89S51 compatible hardware interface
to programmer
Supports 6-clock/12-clock mode via parallel programmer (default
clock mode after ChipErase is 12-clock)
6-clock/12-clock mode Flash bit erasable and programmable via ISP
6-clock/12-clock mode programmable “on-the-fl y” by SFR bit
Peripherals (PCA, timers, UART) may use either 6-clock or
12-clock mode while the CPU is in 6-clock mode
Speed up to 20 MHz with 6-clock cycles per machine cycle (40
MHz equivalent performance); up to 33 MHz with 12 clocks per machine cycle
Fully static operation
RAM expandable externally to 64 kbytes
Four interrupt priority levels
Seven interrupt sources
Four 8-bit I/O ports
Full-duplex enhanced UART
_
Framing error detection
Automatic address recognition
Power control modes
_
Clock can be stopped and resumed
Idle mode
_
Power down mode
Programmable clock-out pin
Second DPTR register
Asynchronous port reset
Low EMI (inhibit ALE)
Programmable Counter Array (PCA)
PWM
Capture/compare
CPU – 8 bit Microcontroller, the 8031/8051/89C51/52.
System configured for 89C51/52.
MEMORY – Total on board capacity of 64KB Program
memory & 6KB of data memory.
RAM – 32K bytes (62C256).
ROM – 64K bytes of EPROM loaded with powerful monitor
program (27512).
TIMER (Optional) – 16 bit programmable timer/counter using 8253
& External Timer T0, T1 from CPU.
I/O – 24 I/O lines using 8255 PPI chips
– 24 I/O lines using 8255 PPI chips (Optional)
KEYBOARD – IBM PC compatible Keyboard
DISPLAY – 20 x 2 Liquid Crystal Display (Backlit)
BUS – All data, address and control signals (TTL compatible)
available at FRC connector
INTERFACE – 1) One serial UART interface provided by 8031/
51/89C51/52.
– 2) RS-232C port through 8251.
BATTERY BACKUP – Battery back-up for the RAM area.
POWER SUPPLY – In-built power supply (+5V, GND also available
on board).
OPERATING TEMP. – 0 to 50°C.
Programmer – 89SXX.. Series Programmer compatible with
(Win-10).
