PCB Designing Lab

“We are OEM and NSIC Approved in more than 300 categories on GEM.This item is available on GEM for purchase pan-India”

The machine is tabletop and compact.

A single operation unit designed for coating of laminates with photoresist

The machine ensure uniform controlled thickness of photoresist.

Maximum Board size : 250mm x 300mm

Tank Capacity : 2-5 liters.

Motorised Screw Driven System.

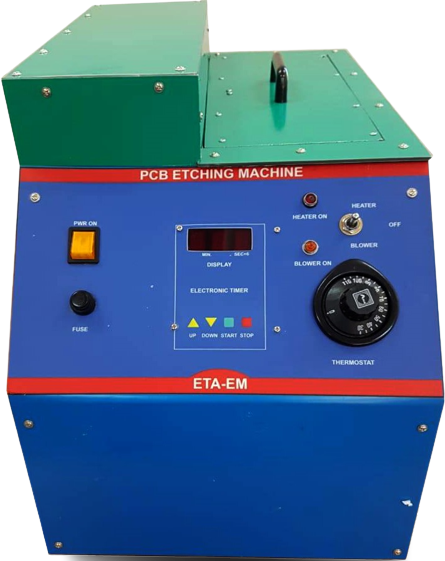

For fast and double sided PCB etching

Useful etching area : 250mm x 300mm (10″ x 12″).

Tank Capacity : 30 liters.

Full Construction : orrosion free.

Heater : Included

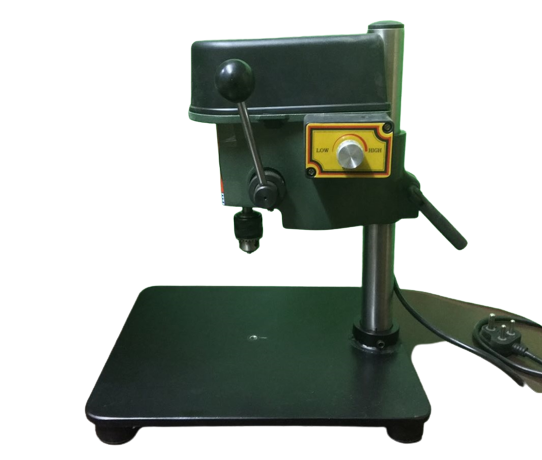

A compact tabletop high speed drilling machine with a quick change Chuck

Drill holding by precision chuck with lapped jaws.

Mains operated AC/DC motor

Motor Speed : upto 9,000/20,000 RPM.

Range : 0.8 to 3.0mm

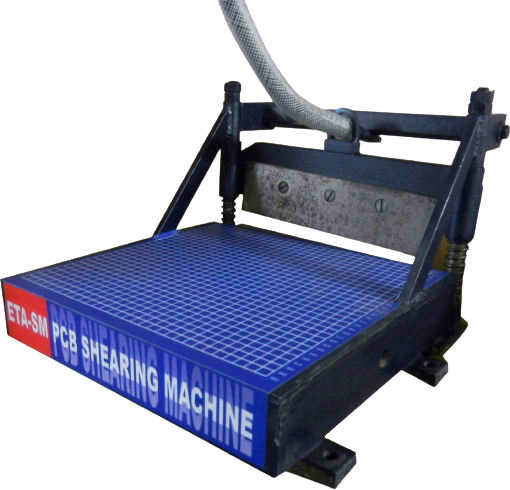

A Bench top shearing machine to PCB’s and Laminators.

Structure with central handle allows ease of cutting.

Width : 300mm.

Table size : 400mm x 350mm.
